Transformer Stations
Flexible and Powerful Solutions for Your Energy Needs
Our mobile transformers provide flexible and high-performance solutions for power supply across a wide range of applications. From construction sites to industrial projects – our transformers ensure you are always well-prepared.

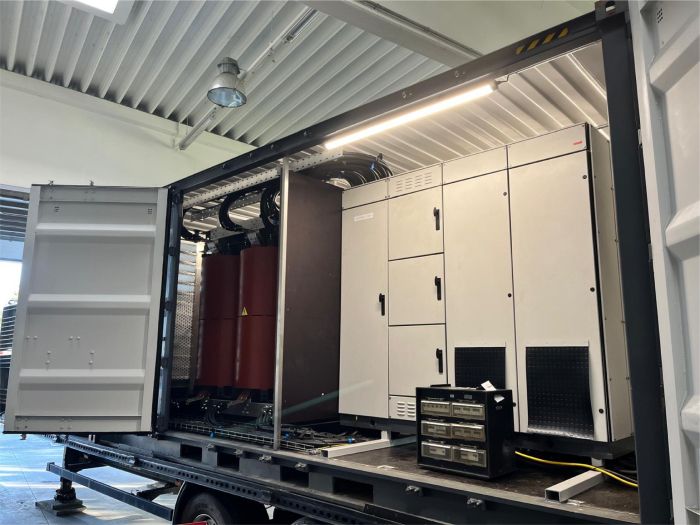

Mobile Transformer Station
HV Switchgear: Sarel 630A 24kV

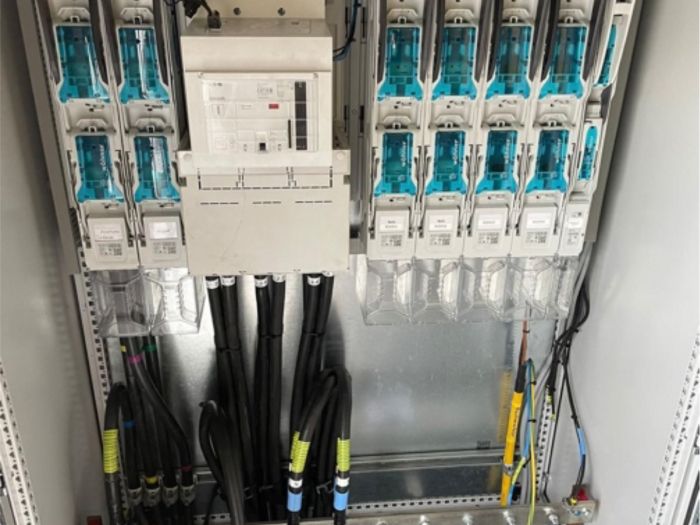

LV Switchgear: EATON/RITTAL 1250A
Primary Voltage: 5.12kV - 22kV
Secondary Voltage: 400/231 V
Frequency: 50 Hz and 60 Hz
Additional Features: Container ventilation, Temperature supervision, Container lights and sockets
Dimensions: 6060 x 2500 x 2950 mm
Weight: 6240 kg

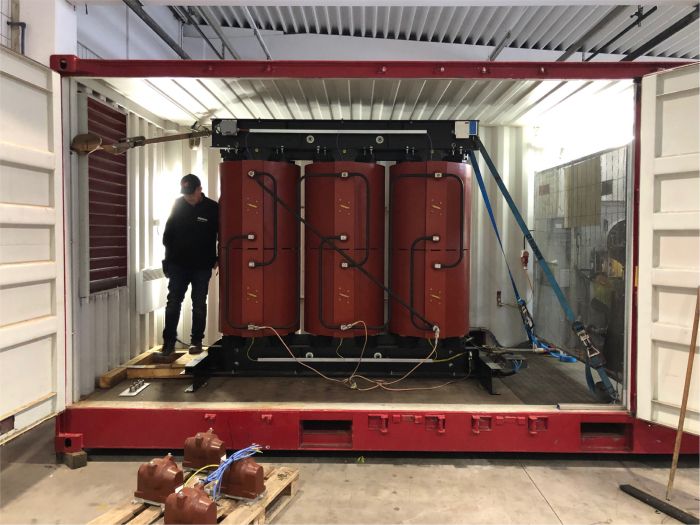

1600 kVA Transformer
Power: 1600 kVA
Primary Voltage: 20 kV
Secondary Voltage: 400/231 V
Group Set: Dyn 5
Cooling: ONAN
Short Circuit Voltage: 5.9% ± 10% tolerance
No-load Losses: 2200 W ± 15% tolerance
Weight: 3305 kg
2500 kVA Transformer
Power: 2500 kVA
Primary Voltage: 6.6 kV or 3.3 kV
Secondary Voltage: 400/231 V
Group Set: Dyn 11
Cooling: ON
Short Circuit Voltage: 6.39% ± 10% tolerance
No-load Losses: 3130 W ± 15% tolerance
Dimensions: 2500 x 1310 x 2217 mm
Weight: 5685 kg

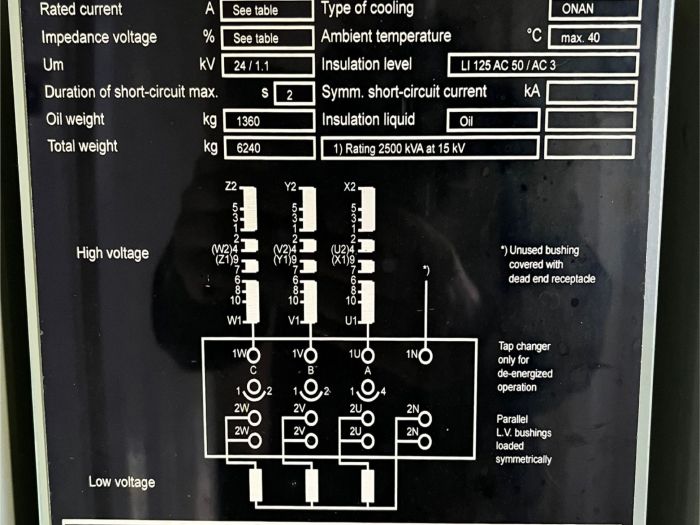

3150 kVA Transformer
(Multitapping)
Capacity: 3150 kVA
Voltage: Primary: 5.12kV-22kV, Secondary: 400/231 V
Cooling: ONAN
Weight: 6240 kg (without container), 11,700 kg (in container)
4500 kVA Transformer
Power: 4500 kVA
Primary Voltage: 20 kV or 10 kV
Secondary Voltage: 400/231 V
Group Set: Dyn 11
Cooling: AN
Short Circuit Voltage: 8% ± 10% tolerance
Container Dimensions: 6060 x 2450 x 2900 mm
Weight in Container: 15,700 kg
Weight without Container: 9700 kg
